Commercial
AuraWall / Ceiling
| Wattage |
16 - 28 W |
|---|---|
| Lumens |
1,920 - 3,350 |
– High efficiency wall / ceiling fixture.

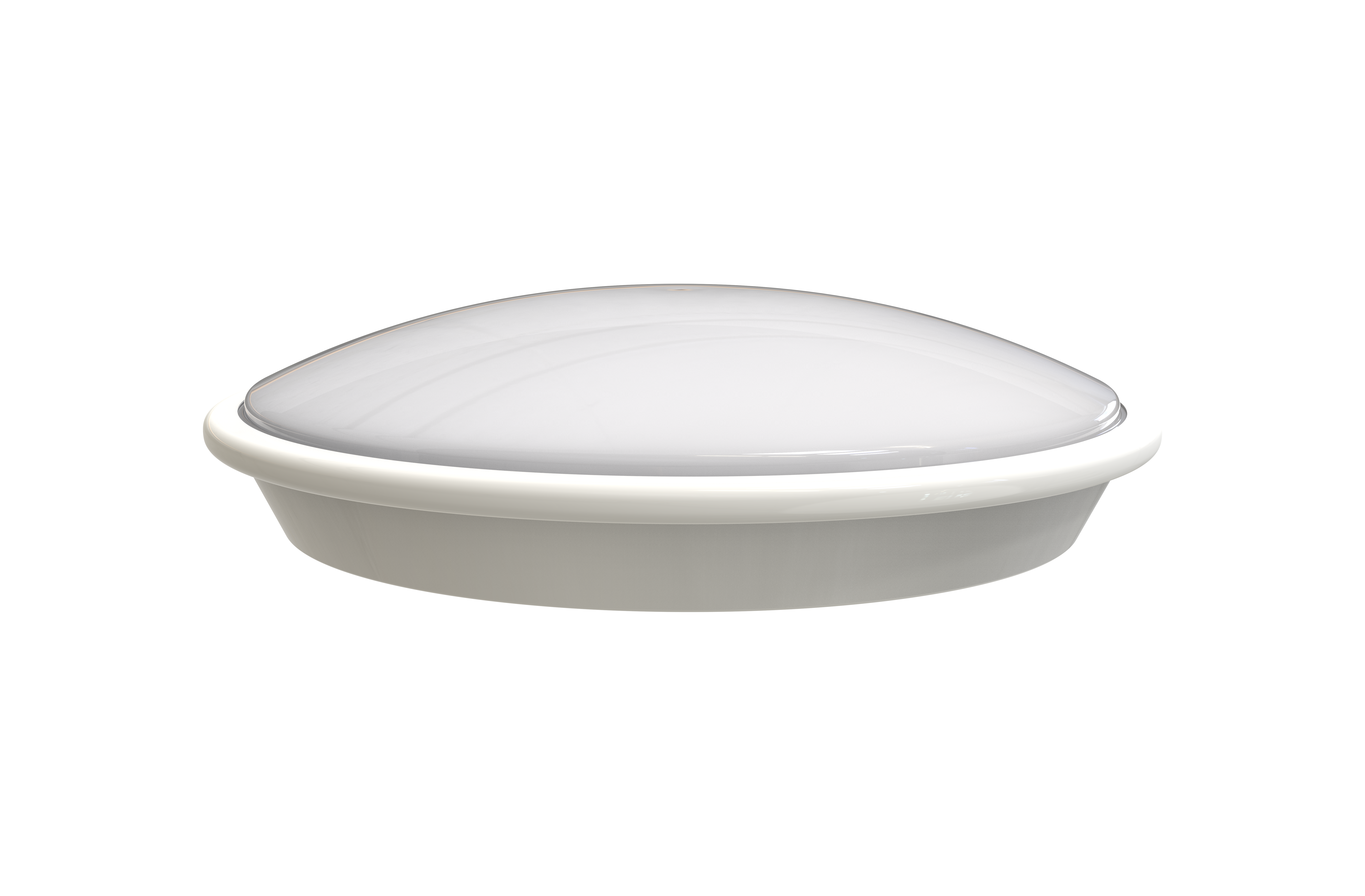

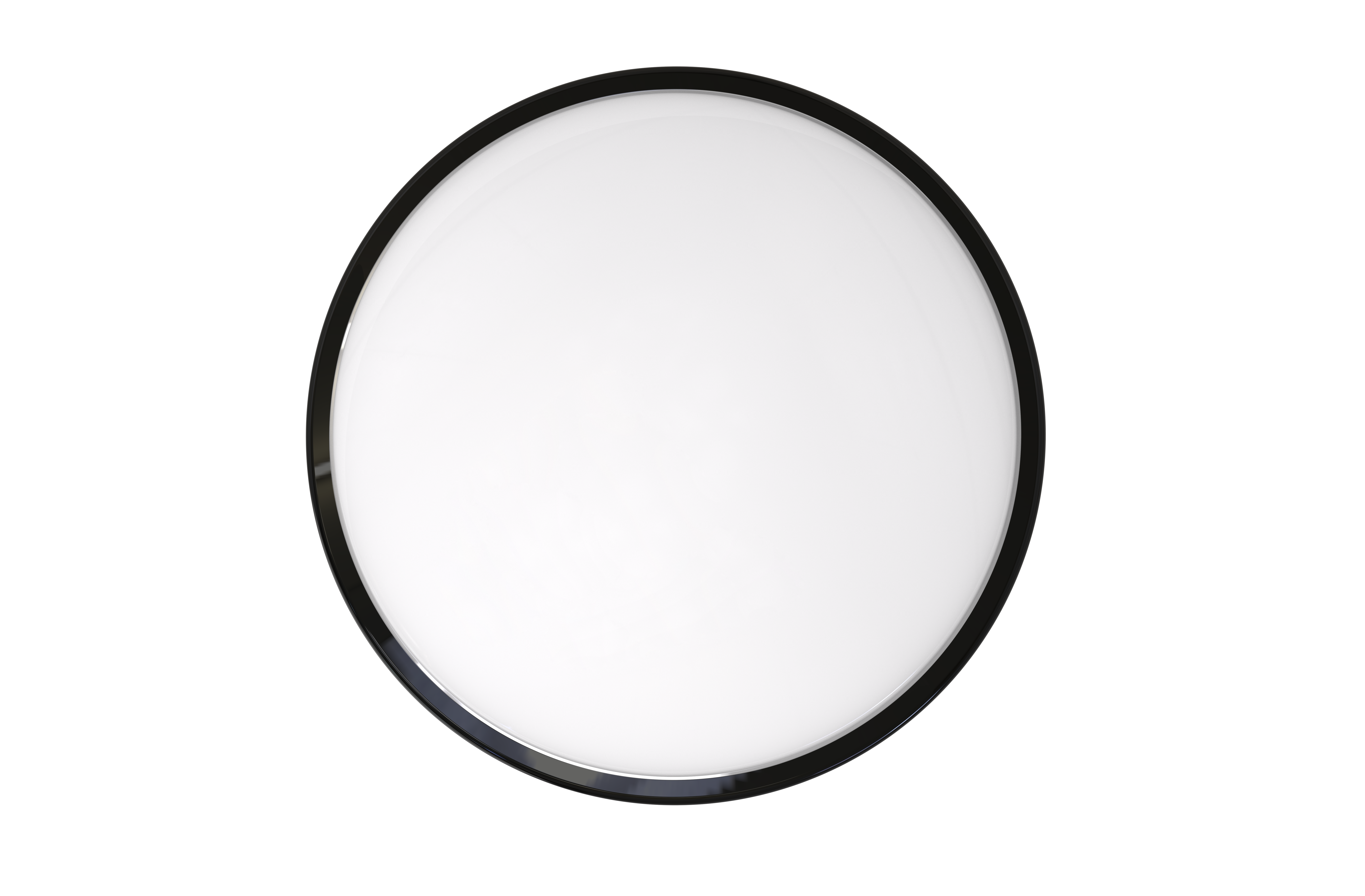

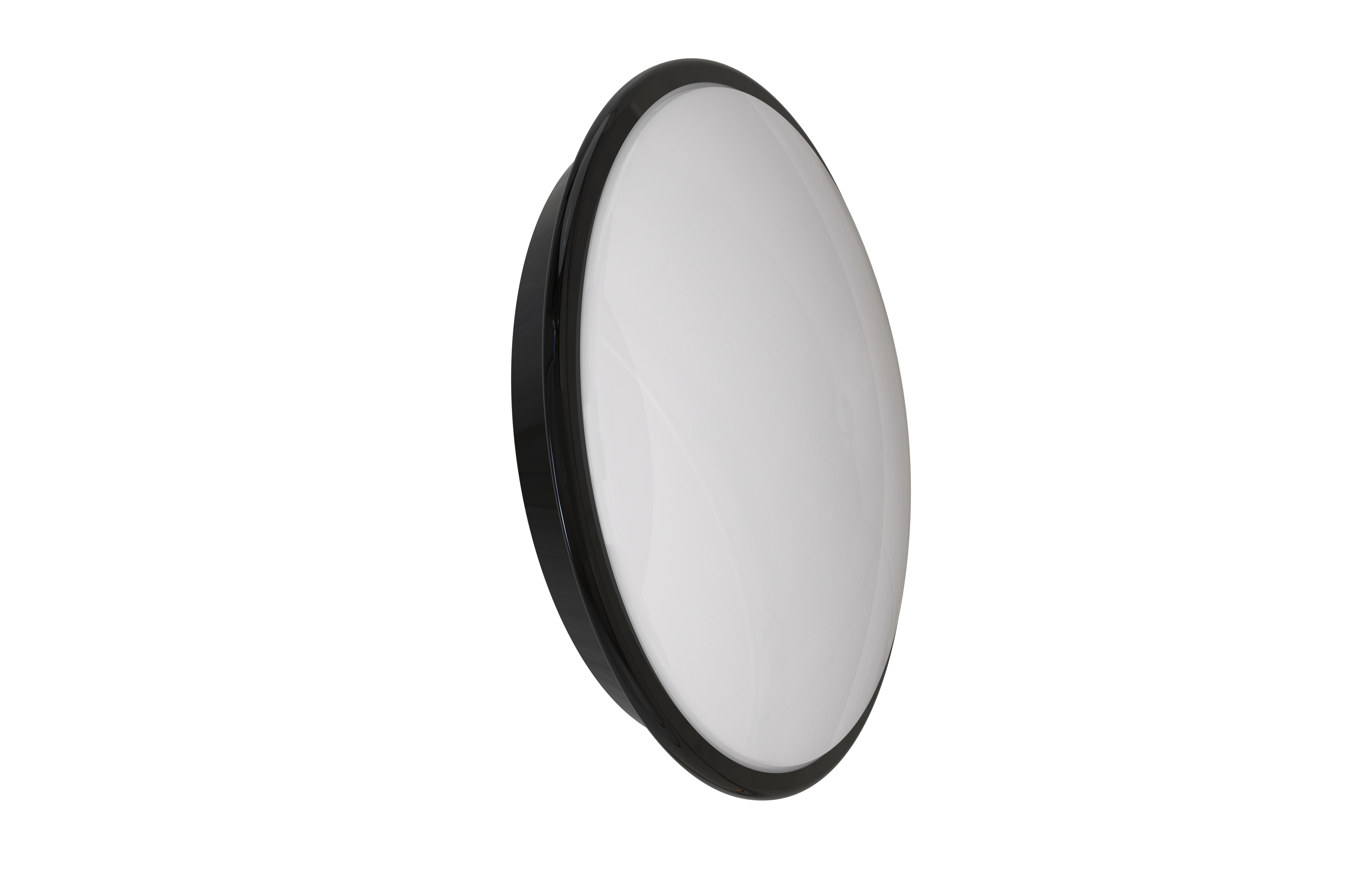

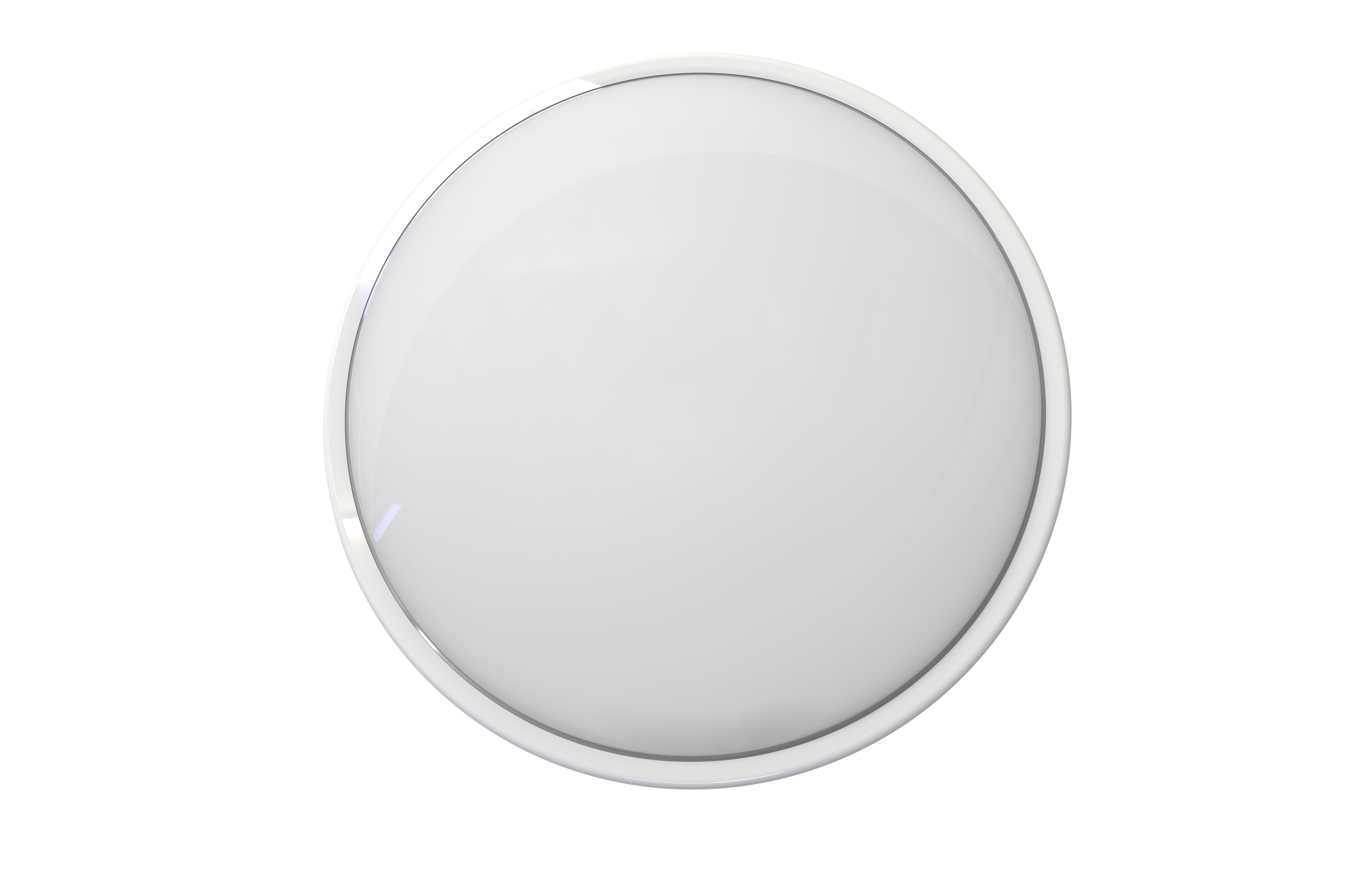

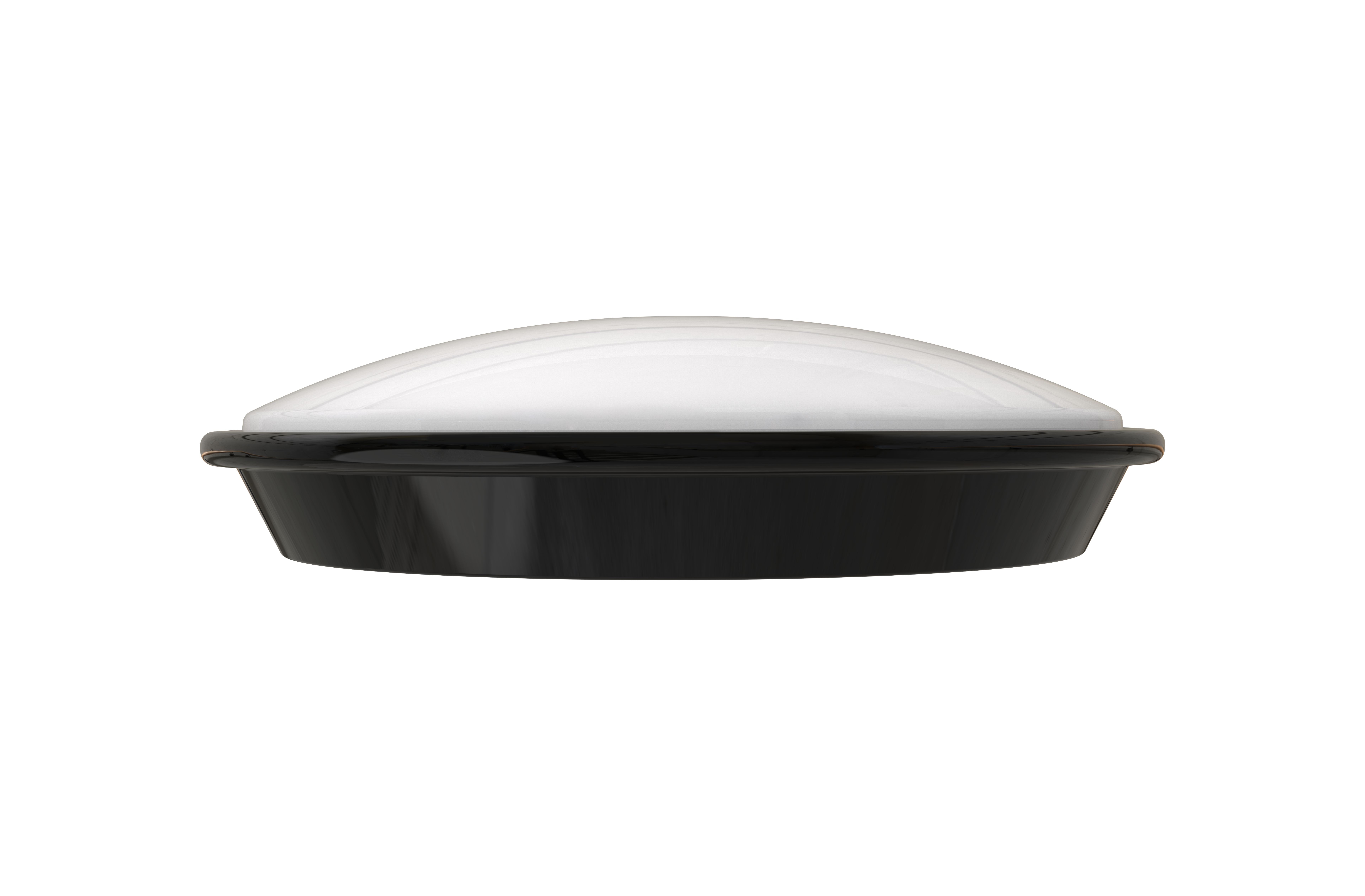

– Spun aluminium base with dished opal diffuser.
– Power / output selectable and CCT adjustable.

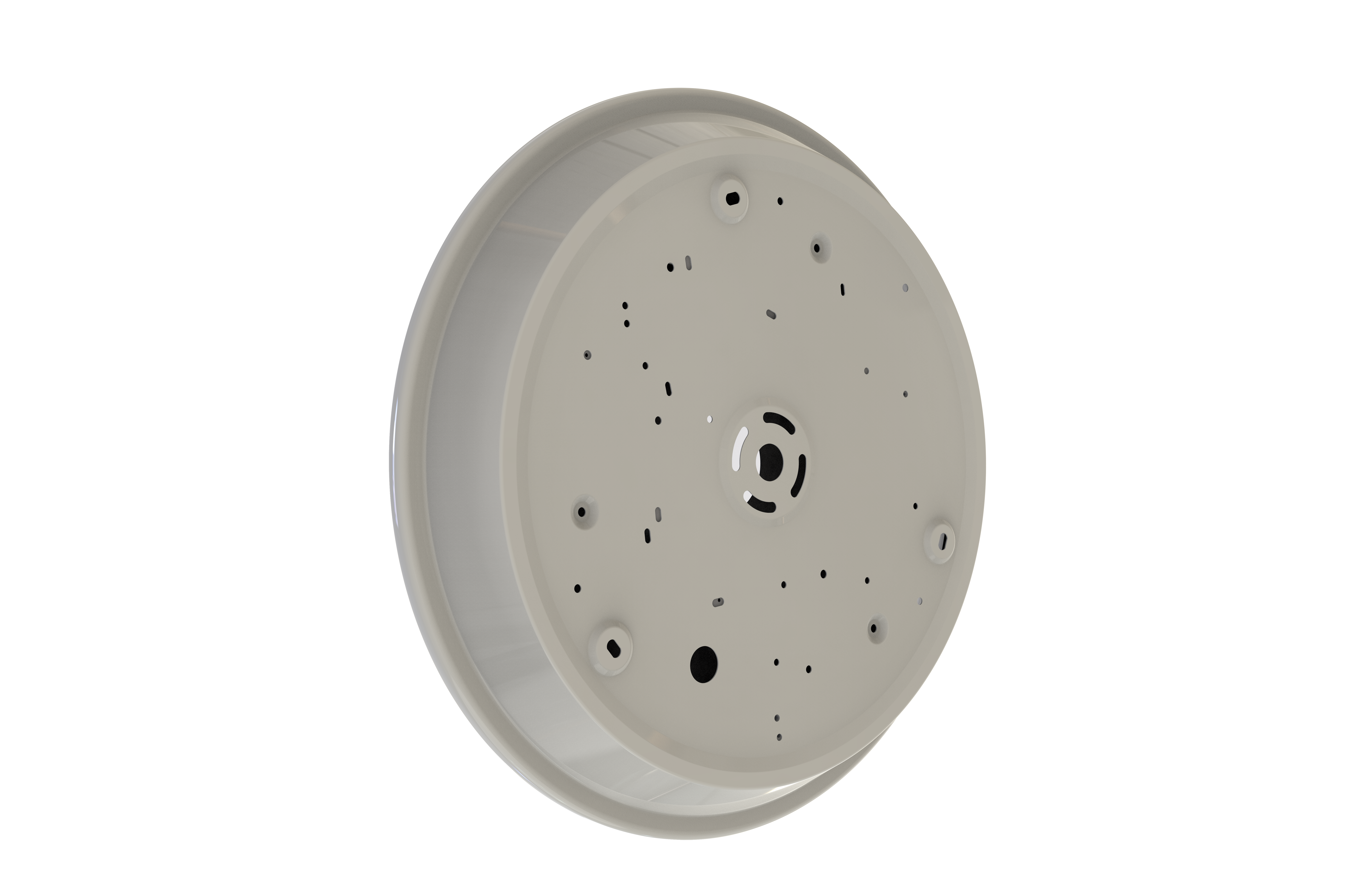

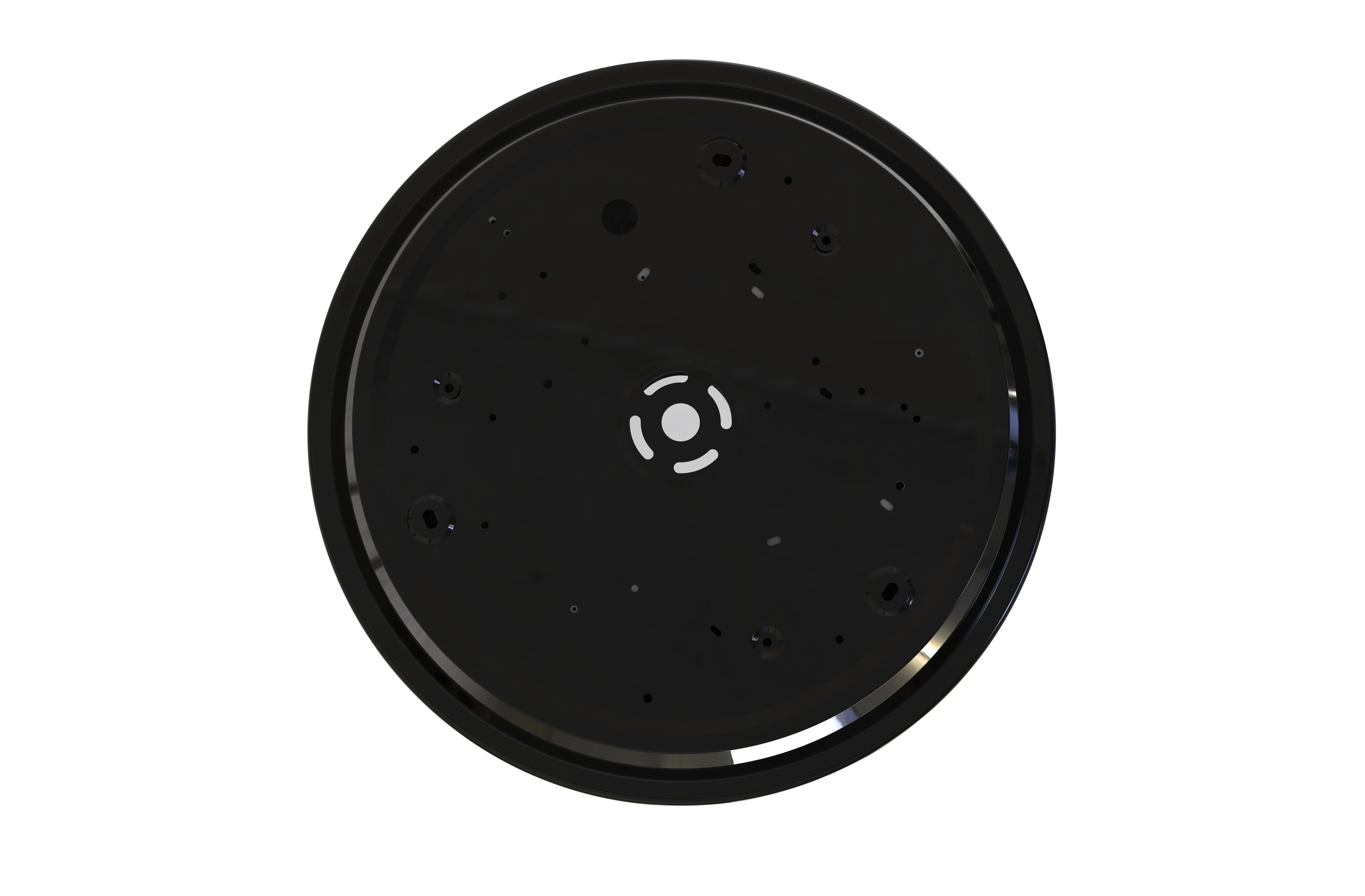

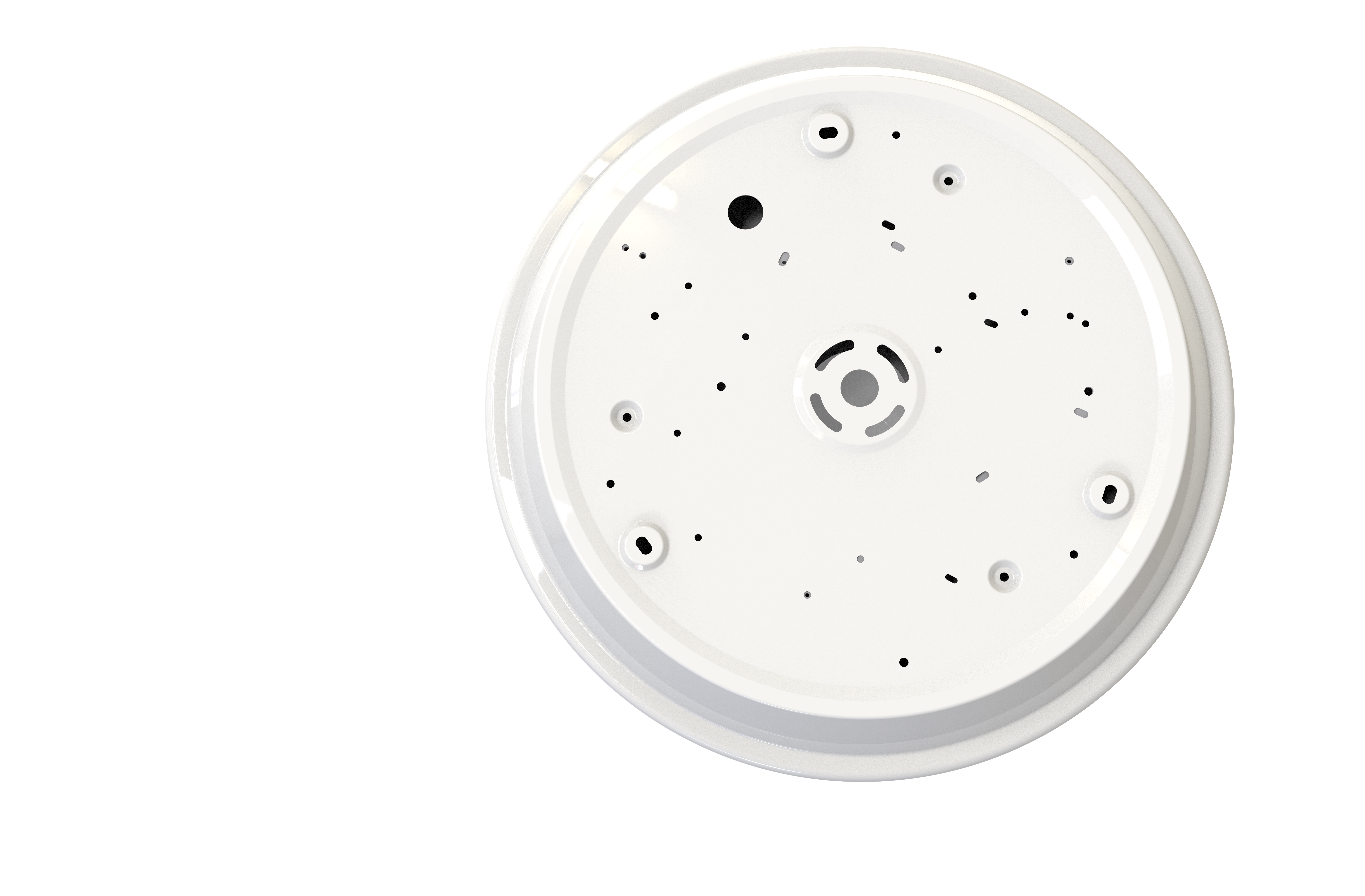

– BESA box fixing on base for versatile mounting options.
– Dimmable and Emergency options available.
At a glance:
| Product Code | Spec sheet | Product Name | Wattage (W) | Output (lm) | Lm/W | CCT (K) | Colour Temp Selectable (CTS) | CTS Number | CRI | Beam Angle | Colour / Finish | IP Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S-AU-430/CTS/B | Download | Aura Wall / Ceiling CTS IP20 - Black | 16W/20W/24W/28W | 1,920 / 2,400 / 2,880 / 3,350 | 120 | 3000K/4000K/6500K | Y | 3 | 80 | 120° | Black | IP20 |
| S-AU-430/CTS/W | Download | Aura Wall / Ceiling CTS IP20 - White | 16W/20W/24W/28W | 1,920 / 2,400 / 2,880 / 3,350 | 120 | 3000K/4000K/6500K | Y | 3 | 80 | 120° | White | IP20 |
| S-AU-430/CTS/EM3/B | Download | Aura Wall / Ceiling CTS Emergency IP20 - Black | 16W/20W/24W/28W | 1,920 / 2,400 / 2,880 / 3,350 | 120 | 3000K/4000K/6500K | Y | 3 | 80 | 120° | Black | IP20 |
| S-AU-430/CTS/EM3/W | Download | Aura Wall / Ceiling CTS Emergency IP20 - White | 16W/20W/24W/28W | 1,920 / 2,400 / 2,880 / 3,350 | 120 | 3000K/4000K/6500K | Y | 3 | 80 | 120° | White | IP20 |
| S-AU-430/CTS/MS/B | Download | Aura Wall / Ceiling CTS MWS IP20 - Black | 16W/20W/24W/28W | 1,920 / 2,400 / 2,880 / 3,350 | 120 | 3000K/4000K/6500K | Y | 3 | 80 | 120° | Black | IP20 |
| S-AU-430/CTS/MS/W | Download | Aura Wall / Ceiling CTS MWS IP20 - White | 16W/20W/24W/28W | 1,920 / 2,400 / 2,880 / 3,350 | 120 | 3000K/4000K/6500K | Y | 3 | 80 | 120° | White | IP20 |
| S-AU-430/CTS/EM3/MS/B | Download | Aura Wall / Ceiling CTS Emergency MWS IP20 - Black | 16W/20W/24W/28W | 1,920 / 2,400 / 2,880 / 3,350 | 120 | 3000K/4000K/6500K | Y | 3 | 80 | 120° | Black | IP20 |
| S-AU-430/CTS/EM3/MS/W | Download | Aura Wall / Ceiling CTS Emergency MWS IP20 - White | 16W/20W/24W/28W | 1,920 / 2,400 / 2,880 / 3,350 | 120 | 3000K/4000K/6500K | Y | 3 | 80 | 120° | White | IP20 |
