Indoor
ExpanseDLight
| Wattage |
8.5 - 21 W |
|---|---|
| Lumens |
1400 - 3,000 lm |
– High performance downlight system of 150Lm/W with a CRI90
– Matt white architectural design for illuminating intended area without light spill and glare
– Unique reflector design with deep cut off to provide visual comfort.

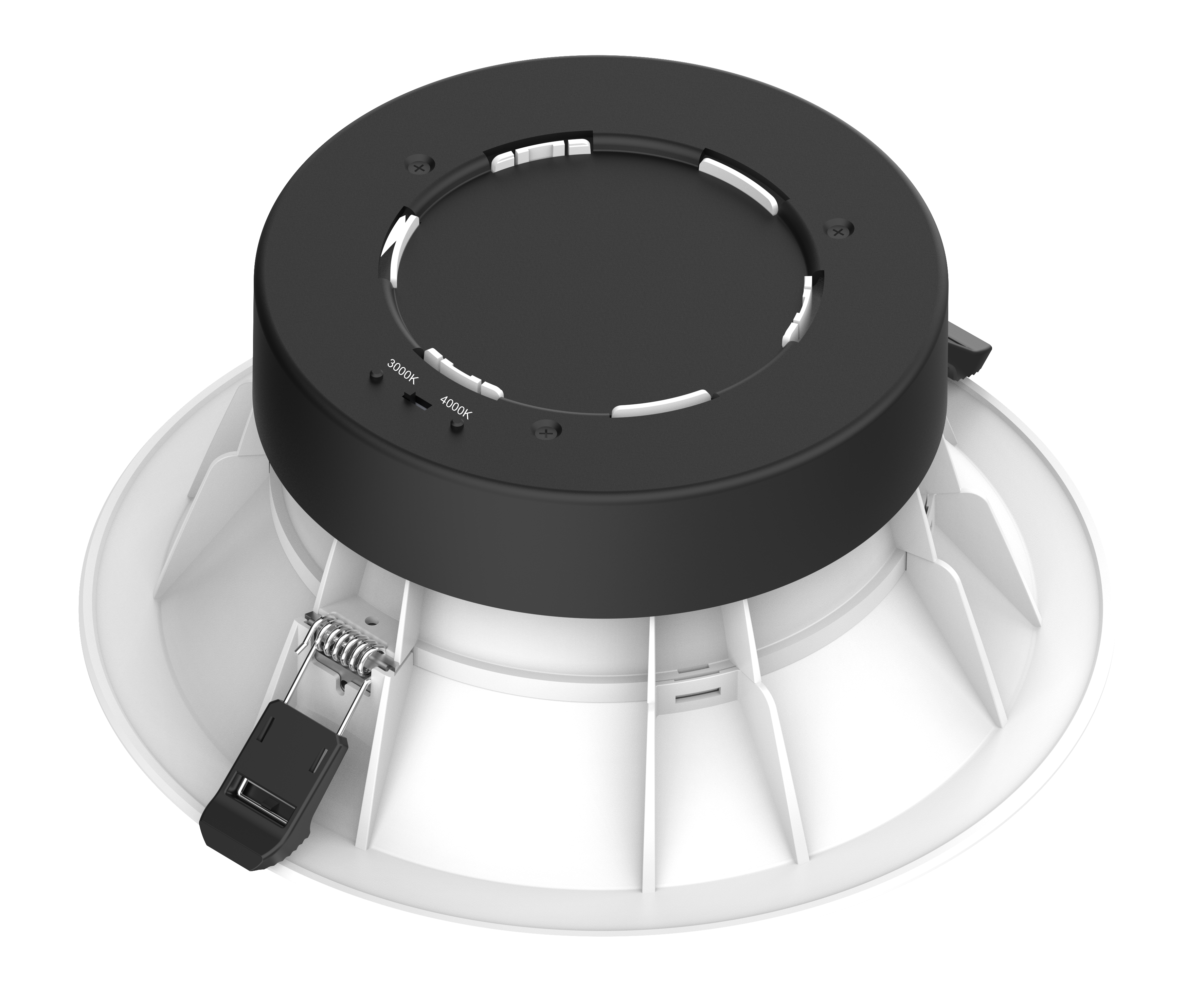

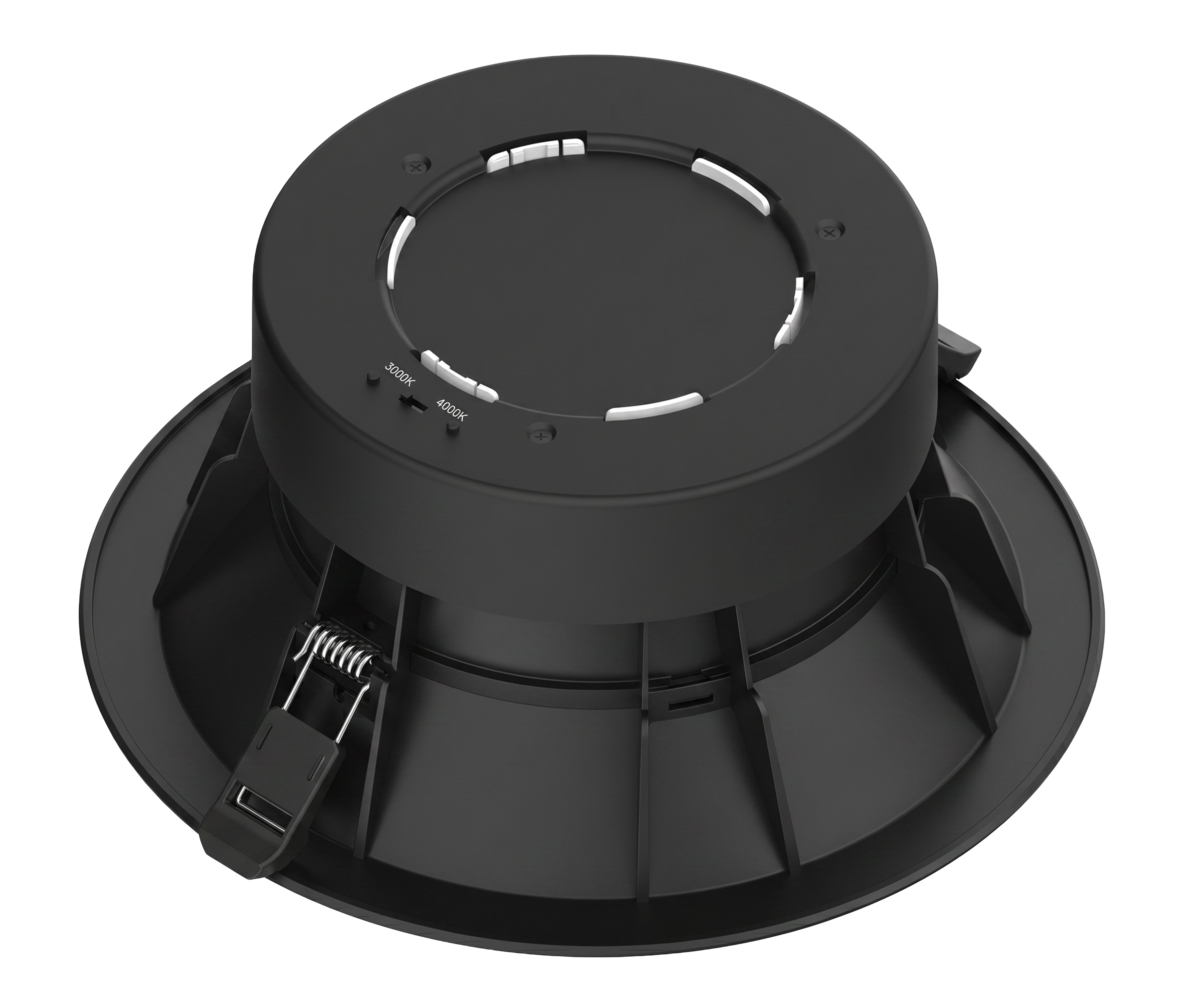

– Dual CCT selection between 3,000K and 4,000K
– Dimmable and Emergency options available.
At a glance:
| Product Code | Spec sheet | Product Name | CCT (K) | Wattage (W) | Output (lm) | Lm/W | Colour Temp Selectable (CTS) | CTS Number | CRI | Beam Angle | UGR | Colour / Finish | IP Rating | IK Rating | Cut Out (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S-EX-23/LO/CTS/B | Download | Expanse DLight LO CTS IP54 - Black | 3000K/4000K | 8.5 | 1400 | 150 | Y | 2 | 90 | 80° | <22 | Black | IP54 | IK02 | 200 |
| S-EX-23/LO/CTS/W | Download | Expanse DLight LO CTS IP54 - White | 3000K/4000K | 8.5 | 1400 | 150 | Y | 2 | 90 | 80° | <22 | White | IP54 | IK02 | 200 |
| S-EX-23/CTS/B | Download | Expanse DLight CTS IP54 - Black | 3000K/4000K | 12.5W / 18W / 21W | 1,900lm / 2,500lm / 3,000lm | 150 | Y | 2 | 90 | 80° | <22 | Black | IP54 | IK02 | 200 |
| S-EX-23/CTS/W | Download | Expanse DLight CTS IP54 - White | 3000K/4000K | 12.5W / 18W / 21W | 1,900lm / 2,500lm / 3,000lm | 150 | Y | 2 | 90 | 80° | <22 | White | IP54 | IK02 | 200 |
-
