Industrial

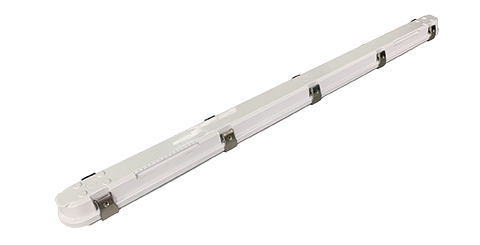

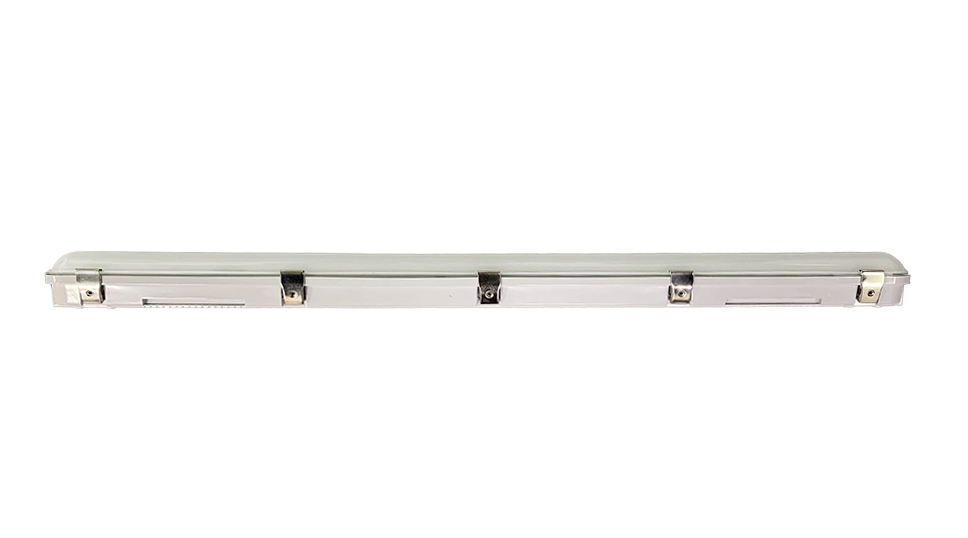

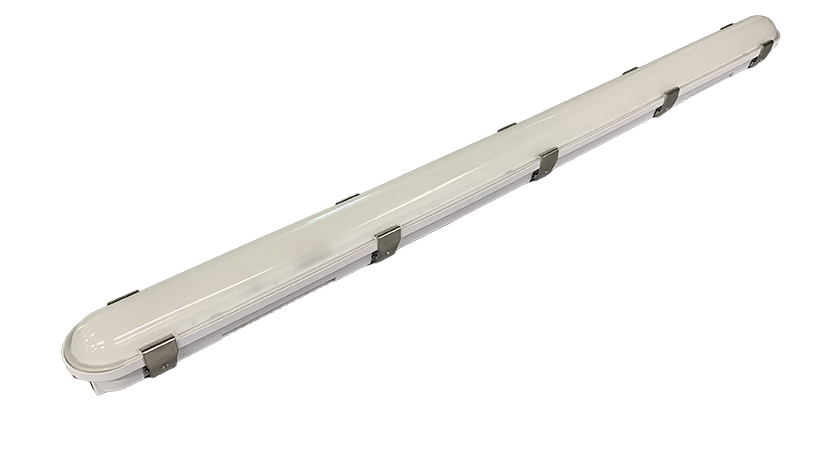

ForgeLightNCF
| Wattage |
12 - 56 W |
|---|---|
| Lumens |
1,920 - 8,960 |
– High efficiency 160Lm/W hybrid NCF
– IK10 impact rated and IP66 protection for all environments
– Multi CCT Selectable from 3,000K, 4,000K and 6,000K
– Multi output / power options with 4 options per size
– Design elements to facilitate ultra-fast installation with modular attchments for Microwave and Emergency conversions
– Dimmable, Microwave and Emergency options availble (emergency not availble for S-FL-2/CTS)
At a glance:
| Product Code | Spec sheet | Product Name | CCT (K) | Wattage (W) | Output (lm) | Lm/W | Colour Temp Selectable (CTS) | CTS Number | CRI | Beam Angle | Colour / Finish | IP Rating | IK Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S-FL-2/CTS | Download | ForgeLight NCF 2ft CTS IP66 - Grey | 3000K/4000K/6000K | 12W/15W/17W/20W | 1,920 / 2,400 / 2,720 / 3,200 | 160 | Y | 3 | 80 | 120° | Grey | IP66 | IK10 |
| S-FL-4/CTS | Download | ForgeLight NCF 4ft CTS IP66 - Grey | 3000K/4000K/6000K | 21W/26W/32W/36W | 3,360 / 4,160 / 5,120 / 5,760 | 160 | Y | 3 | 80 | 120° | Grey | IP66 | IK10 |
| S-FL-4/CTS/EM3 | Download | ForgeLight NCF 4ft CTS Emergency IP66 - Grey | 3000K/4000K/6000K | 21W/26W/32W/36W | 3,360 / 4,160 / 5,120 / 5,760 | 160 | Y | 3 | 80 | 120° | Grey | IP66 | IK10 |
| S-FL-5/CTS | Download | ForgeLight NCF 5ft CTS IP66 - Grey | 3000K/4000K/6000K | 28W/34W/42W/48W | 4,480 / 5,440 / 6,720 / 7,680 | 160 | Y | 3 | 80 | 120° | Grey | IP66 | IK10 |
| S-FL-5/CTS/EM3 | Download | ForgeLight NCF 5ft CTS Emergency IP66 - Grey | 3000K/4000K/6000K | 28W/34W/42W/48W | 4,480 / 5,440 / 6,720 / 7,680 | 160 | Y | 3 | 80 | 120° | Grey | IP66 | IK10 |
| S-FL-6/CTS | Download | ForgeLight NCF 6ft CTS IP66 - Grey | 3000K/4000K/6000K | 33W/40W/48W/56W | 5,280 / 6,400 / 7,680 / 8,960 | 160 | Y | 3 | 80 | 120° | Grey | IP66 | IK10 |
| S-FL-6/CTS/EM3 | Download | ForgeLight NCF 6ft CTS Emergency IP66 - Grey | 3000K/4000K/6000K | 33W/40W/48W/56W | 5,280 / 6,400 / 7,680 / 8,960 | 160 | Y | 3 | 80 | 120° | Grey | IP66 | IK10 |
-
