Outdoor
LXLineCOB Single CCT
| Wattage |
4 - 8 W |
|---|---|
| Lumens |
330 - 820 |
– Single White COB LED strip – Suitable for residential, hospitality and retail applications – Flexible and infinatly versatile LED strip with self-adhesive back – Uniform and continuous light source for a seamless look and output – Single white options from 2,700K, 3,000K, 4,000K and 6,500K for all output options and circadian rhythm requirements – High CRI 90 and efficiency ensures the highest quality performance and light quality – Fast fit connectors and accessories available
At a glance:
| Product Code | Spec sheet | Product Name | Wattage (W) | Output (lm) | Lm/W | CCT (K) | CTS Number | CRI | Beam Angle | IP Rating |
|---|---|---|---|---|---|---|---|---|---|---|
| S-LX-C4/2/27/I | Download | LXLine COB 24V 4W 2M 2700K IP20 | 4W/M | 330 | 82 | 2700K | 3 | 90 | 150° | IP20 |
| S-LX-C4/2/30/I | Download | LXLine COB 24V 4W 2M 3000K IP20 | 4W/M | 380 | 95 | 4000K | 3 | 90 | 150° | IP20 |
| S-LX-C4/2/40/I | Download | LXLine COB 24V 4W 2M 4000K IP20 | 4W/M | 345 | 86 | 2700K | 3 | 90 | 150° | IP20 |
| S-LX-C4/2/65/I | Download | LXLine COB 24V 4W 2M 6500K IP20 | 4W/M | 355 | 89 | 3000K | 3 | 90 | 150° | IP20 |
| S-LX-C4/5/27/I | Download | LXLine COB 24V 4W 5M 2700K IP20 | 4W/M | 400 | 100 | 4000K | 3 | 90 | 150° | IP20 |
| S-LX-C4/5/30/I | Download | LXLine COB 24V 4W 5M 3000K IP20 | 4W/M | 410 | 102 | 6500K | 3 | 90 | 150° | IP20 |
| S-LX-C4/5/40/I | Download | LXLine COB 24V 4W 5M 4000K IP20 | 4W/M | 345 | 86 | 2700K | 3 | 90 | 150° | IP20 |
| S-LX-C4/5/65/I | Download | LXLine COB 24V 4W 5M 6500K IP20 | 4W/M | 400 | 100 | 4000K | 3 | 90 | 150° | IP20 |
| S-LX-C4/10/27/I | Download | LXLine COB 24V 4W 10M 2700K IP20 | 4W/M | 345 | 86 | 2700K | 3 | 90 | 150° | IP20 |
| S-LX-C4/10/30/I | Download | LXLine COB 24V 4W 10M 3000K IP20 | 4W/M | 355 | 89 | 3000K | 3 | 90 | 150° | IP20 |
| S-LX-C4/10/40/I | Download | LXLine COB 24V 4W 10M 4000K IP20 | 4W/M | 400 | 100 | 4000K | 3 | 90 | 150° | IP20 |
| S-LX-C4/10/65/I | Download | LXLine COB 24V 4W 10M 6500K IP20 | 4W/M | 410 | 102 | 6500K | 3 | 90 | 150° | IP20 |
| S-LX-C4/50/27/I | Download | LXLine COB 24V 4W 50M 2700K IP20 | 4W/M | 400 | 100 | 4000K | 3 | 90 | 150° | IP20 |
| S-LX-C4/50/30/I | Download | LXLine COB 24V 4W 50M 3000K IP20 | 4W/M | 410 | 102 | 6500K | 3 | 90 | 150° | IP20 |
| S-LX-C4/50/40/I | Download | LXLine COB 24V 4W 50M 4000K IP20 | 4W/M | 345 | 86 | 2700K | 3 | 90 | 150° | IP20 |
| S-LX-C4/50/65/I | Download | LXLine COB 24V 4W 50M 6500K IP20 | 4W/M | 355 | 89 | 3000K | 3 | 90 | 150° | IP20 |
| S-LX-C4/2/27/E | Download | LXLine COB 24V 4W 2M 2700K IP67 | 4W/M | 340 | 85 | 3000K | 3 | 90 | 150° | IP67 |
| S-LX-C4/2/30/E | Download | LXLine COB 24V 4W 2M 3000K IP67 | 4W/M | 390 | 97 | 6500K | 3 | 90 | 150° | IP67 |
| S-LX-C4/2/40/E | Download | LXLine COB 24V 4W 2M 4000K IP67 | 4W/M | 330 | 82 | 2700K | 3 | 90 | 150° | IP67 |
| S-LX-C4/2/65/E | Download | LXLine COB 24V 4W 2M 6500K IP67 | 4W/M | 340 | 85 | 3000K | 3 | 90 | 150° | IP67 |
| S-LX-C4/5/27/E | Download | LXLine COB 24V 4W 5M 2700K IP67 | 4W/M | 380 | 95 | 4000K | 3 | 90 | 150° | IP67 |
| S-LX-C4/5/30/E | Download | LXLine COB 24V 4W 5M 3000K IP67 | 4W/M | 390 | 97 | 6500K | 3 | 90 | 150° | IP67 |
| S-LX-C4/5/40/E | Download | LXLine COB 24V 4W 5M 4000K IP67 | 4W/M | 355 | 89 | 3000K | 3 | 90 | 150° | IP67 |
| S-LX-C4/5/65/E | Download | LXLine COB 24V 4W 5M 6500K IP67 | 4W/M | 410 | 102 | 6500K | 3 | 90 | 150° | IP67 |
| S-LX-C4/10/27/E | Download | LXLine COB 24V 4W 10M 2700K IP67 | 4W/M | 330 | 82 | 2700K | 3 | 90 | 150° | IP67 |
| S-LX-C4/10/30/E | Download | LXLine COB 24V 4W 10M 3000K IP67 | 4W/M | 340 | 85 | 3000K | 3 | 90 | 150° | IP67 |
| S-LX-C4/10/40/E | Download | LXLine COB 24V 4W 10M 4000K IP67 | 4W/M | 380 | 95 | 4000K | 3 | 90 | 150° | IP67 |
| S-LX-C4/10/65/E | Download | LXLine COB 24V 4W 10M 6500K IP67 | 4W/M | 390 | 97 | 6500K | 3 | 90 | 150° | IP67 |
| S-LX-C4/50/27/E | Download | LXLine COB 24V 4W 50M 2700K IP67 | 4W/M | 380 | 95 | 4000K | 3 | 90 | 150° | IP67 |
| S-LX-C4/50/30/E | Download | LXLine COB 24V 4W 50M 3000K IP67 | 4W/M | 390 | 97 | 6500K | 3 | 90 | 150° | IP67 |
| S-LX-C4/50/40/E | Download | LXLine COB 24V 4W 50M 4000K IP67 | 4W/M | 330 | 82 | 2700K | 3 | 90 | 150° | IP67 |
| S-LX-C4/50/65/E | Download | LXLine COB 24V 4W 50M 6500K IP67 | 4W/M | 340 | 85 | 3000K | 3 | 90 | 150° | IP67 |
| S-LX-C8/2/27/I | Download | LXLine COB 24V 8W 2M 2700K IP20 | 8W/M | 690 | 86 | 2700K | 3 | 90 | 150° | IP20 |
| S-LX-C8/2/30/I | Download | LXLine COB 24V 8W 2M 3000K IP20 | 8W/M | 710 | 89 | 3000K | 3 | 90 | 150° | IP20 |
| S-LX-C8/2/40/I | Download | LXLine COB 24V 8W 2M 4000K IP20 | 8W/M | 800 | 100 | 4000K | 3 | 90 | 150° | IP20 |
| S-LX-C8/2/65/I | Download | LXLine COB 24V 8W 2M 6500K IP20 | 8W/M | 820 | 102 | 6500K | 3 | 90 | 150° | IP20 |
| S-LX-C8/5/27/I | Download | LXLine COB 24V 8W 5M 2700K IP20 | 8W/M | 690 | 86 | 2700K | 3 | 90 | 150° | IP20 |
| S-LX-C8/5/30/I | Download | LXLine COB 24V 8W 5M 3000K IP20 | 8W/M | 710 | 89 | 3000K | 3 | 90 | 150° | IP20 |
| S-LX-C8/5/40/I | Download | LXLine COB 24V 8W 5M 4000K IP20 | 8W/M | 800 | 100 | 4000K | 3 | 90 | 150° | IP20 |
| S-LX-C8/5/65/I | Download | LXLine COB 24V 8W 5M 6500K IP20 | 8W/M | 820 | 102 | 6500K | 3 | 90 | 150° | IP20 |
| S-LX-C8/10/27/I | Download | LXLine COB 24V 8W 10M 2700K IP20 | 8W/M | 690 | 86 | 2700K | 3 | 90 | 150° | IP20 |
| S-LX-C8/10/30/I | Download | LXLine COB 24V 8W 10M 3000K IP20 | 8W/M | 710 | 89 | 3000K | 3 | 90 | 150° | IP20 |
| S-LX-C8/10/40/I | Download | LXLine COB 24V 8W 10M 4000K IP20 | 8W/M | 800 | 100 | 4000K | 3 | 90 | 150° | IP20 |
| S-LX-C8/10/65/I | Download | LXLine COB 24V 8W 10M 6500K IP20 | 8W/M | 820 | 102 | 6500K | 3 | 90 | 150° | IP20 |
| S-LX-C8/50/27/I | Download | LXLine COB 24V 8W 50M 2700K IP20 | 8W/M | 690 | 86 | 2700K | 3 | 90 | 150° | IP20 |
| S-LX-C8/50/30/I | Download | LXLine COB 24V 8W 50M 3000K IP20 | 8W/M | 710 | 89 | 3000K | 3 | 90 | 150° | IP20 |
| S-LX-C8/50/40/I | Download | LXLine COB 24V 8W 50M 4000K IP20 | 8W/M | 800 | 100 | 4000K | 3 | 90 | 150° | IP20 |
| S-LX-C8/50/65/I | Download | LXLine COB 24V 8W 50M 6500K IP20 | 8W/M | 820 | 102 | 6500K | 3 | 90 | 150° | IP20 |
| S-LX-C8/2/27/E | Download | LXLine COB 24V 8W 2M 2700K IP67 | 8W/M | 660 | 82 | 2700K | 3 | 90 | 150° | IP67 |
| S-LX-C8/2/30/E | Download | LXLine COB 24V 8W 2M 3000K IP67 | 8W/M | 680 | 85 | 3000K | 3 | 90 | 150° | IP67 |
| S-LX-C8/2/40/E | Download | LXLine COB 24V 8W 2M 4000K IP67 | 8W/M | 760 | 95 | 4000K | 3 | 90 | 150° | IP67 |
| S-LX-C8/2/65/E | Download | LXLine COB 24V 8W 2M 6500K IP67 | 8W/M | 780 | 97 | 6500K | 3 | 90 | 150° | IP67 |
| S-LX-C8/5/27/E | Download | LXLine COB 24V 8W 5M 2700K IP67 | 8W/M | 660 | 82 | 2700K | 3 | 90 | 150° | IP67 |
| S-LX-C8/5/30/E | Download | LXLine COB 24V 8W 5M 3000K IP67 | 8W/M | 680 | 85 | 3000K | 3 | 90 | 150° | IP67 |
| S-LX-C8/5/40/E | Download | LXLine COB 24V 8W 5M 4000K IP67 | 8W/M | 760 | 95 | 4000K | 3 | 90 | 150° | IP67 |
| S-LX-C8/5/65/E | Download | LXLine COB 24V 8W 5M 6500K IP67 | 8W/M | 780 | 97 | 6500K | 3 | 90 | 150° | IP67 |
| S-LX-C8/10/27/E | Download | LXLine COB 24V 8W 10M 2700K IP67 | 8W/M | 660 | 82 | 2700K | 3 | 90 | 150° | IP67 |
| S-LX-C8/10/30/E | Download | LXLine COB 24V 8W 10M 3000K IP67 | 8W/M | 680 | 85 | 3000K | 3 | 90 | 150° | IP67 |
| S-LX-C8/10/40/E | Download | LXLine COB 24V 8W 10M 4000K IP67 | 8W/M | 760 | 95 | 4000K | 3 | 90 | 150° | IP67 |
| S-LX-C8/10/65/E | Download | LXLine COB 24V 8W 10M 6500K IP67 | 8W/M | 780 | 97 | 6500K | 3 | 90 | 150° | IP67 |
| S-LX-C8/50/27/E | Download | LXLine COB 24V 8W 50M 2700K IP67 | 8W/M | 660 | 82 | 2700K | 3 | 90 | 150° | IP67 |
| S-LX-C8/50/30/E | Download | LXLine COB 24V 8W 50M 3000K IP67 | 8W/M | 680 | 85 | 3000K | 3 | 90 | 150° | IP67 |
| S-LX-C8/50/40/E | Download | LXLine COB 24V 8W 50M 4000K IP67 | 8W/M | 760 | 95 | 4000K | 3 | 90 | 150° | IP67 |
| S-LX-C8/50/65/E | Download | LXLine COB 24V 8W 50M 6500K IP67 | 8W/M | 780 | 97 | 6500K | 3 | 90 | 150° | IP67 |
LXLine Lead / Connector Accessories
-
Accessories -
Accessories

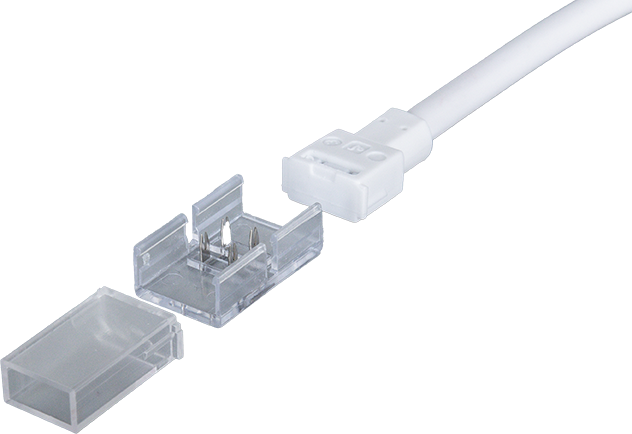

LXLineCOB Single CCT Mains Lead
View
LXLine Controllers & Remotes
-
Accessories

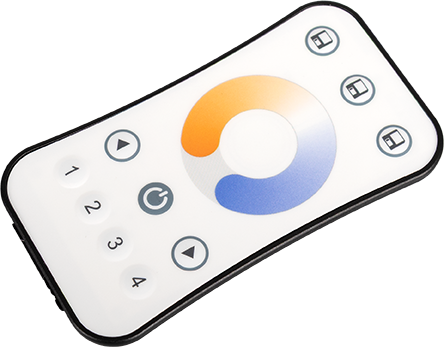

LXLineCOB Tunable White 4 Zone RF Remote
View -
Accessories

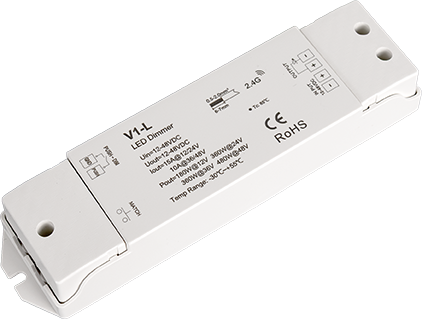

LXLineCOB 15A 1 Channel Dim RF Controller
