Industrial

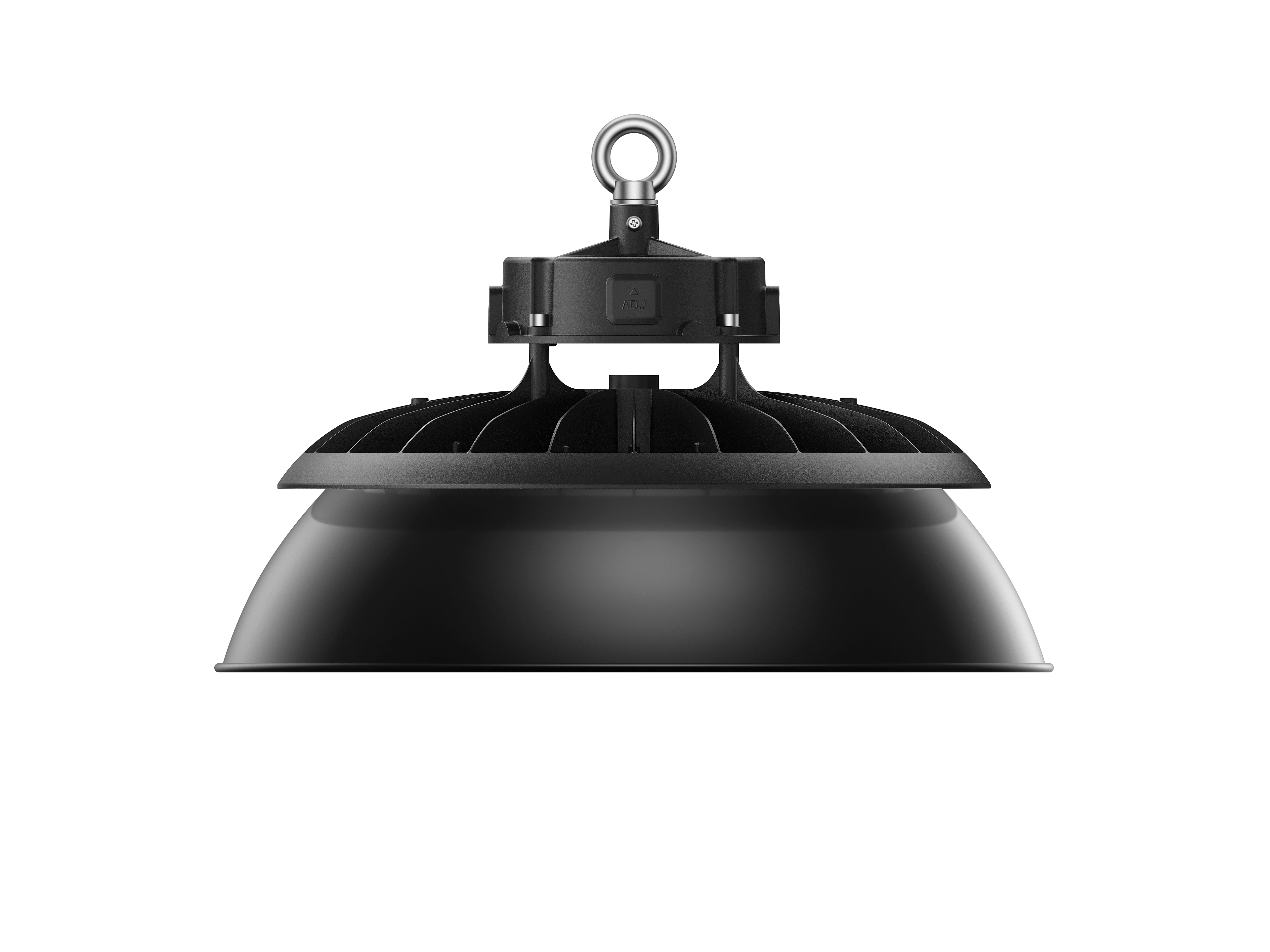

PowerRayHigh Bay
| Wattage |
60 - 200 W |
|---|---|
| Lumens |
9,600 - 32,000 |

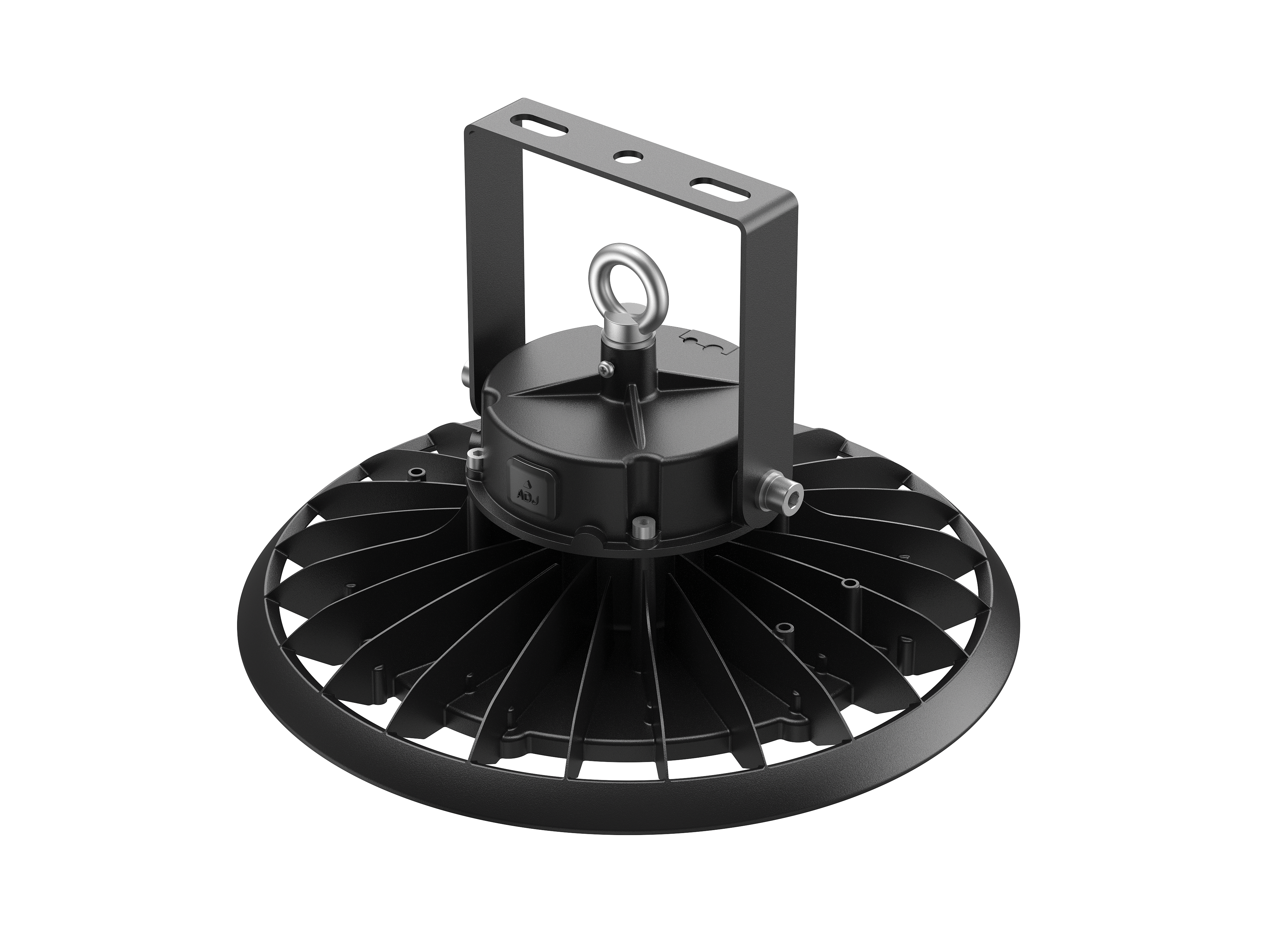

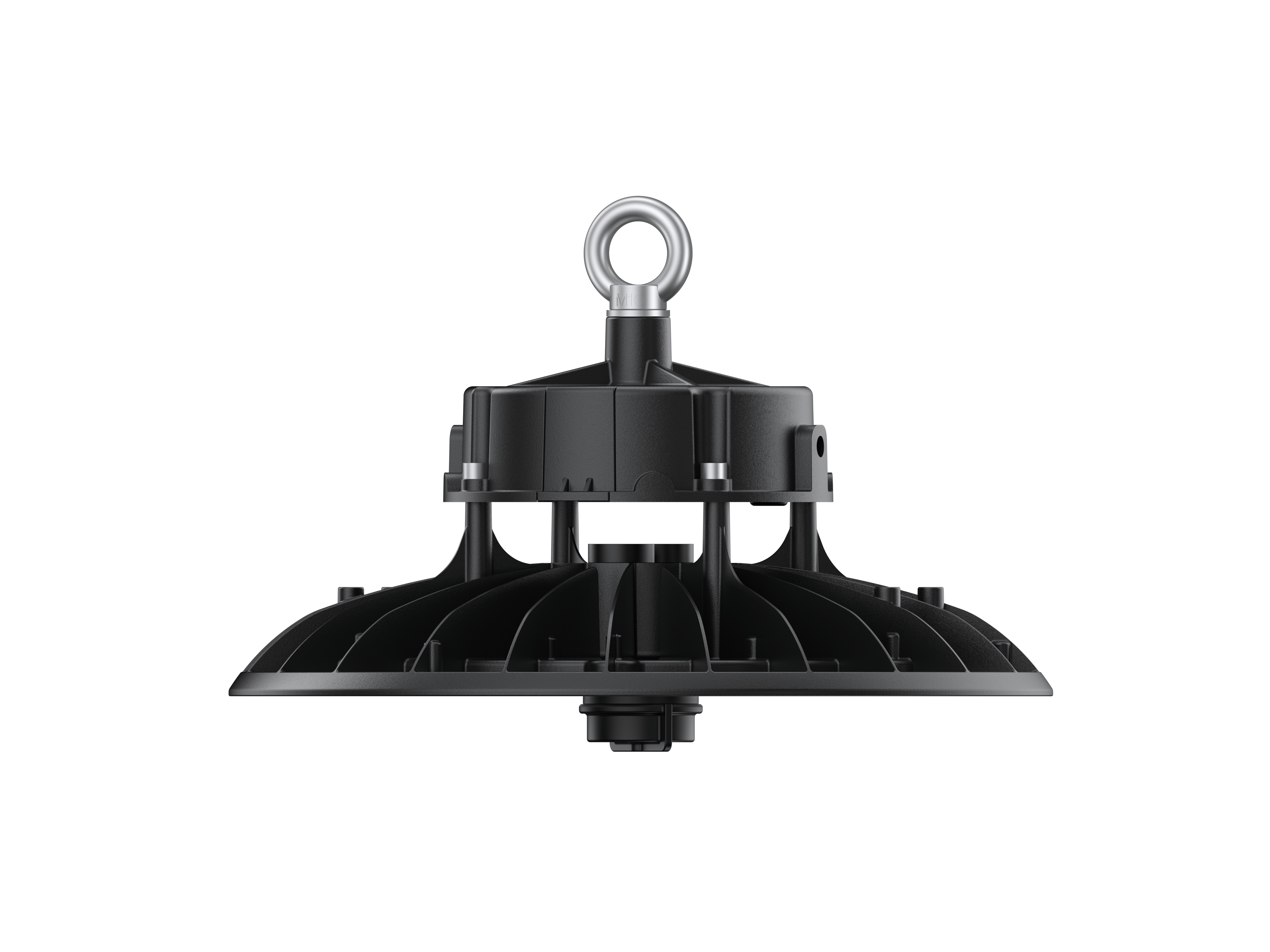

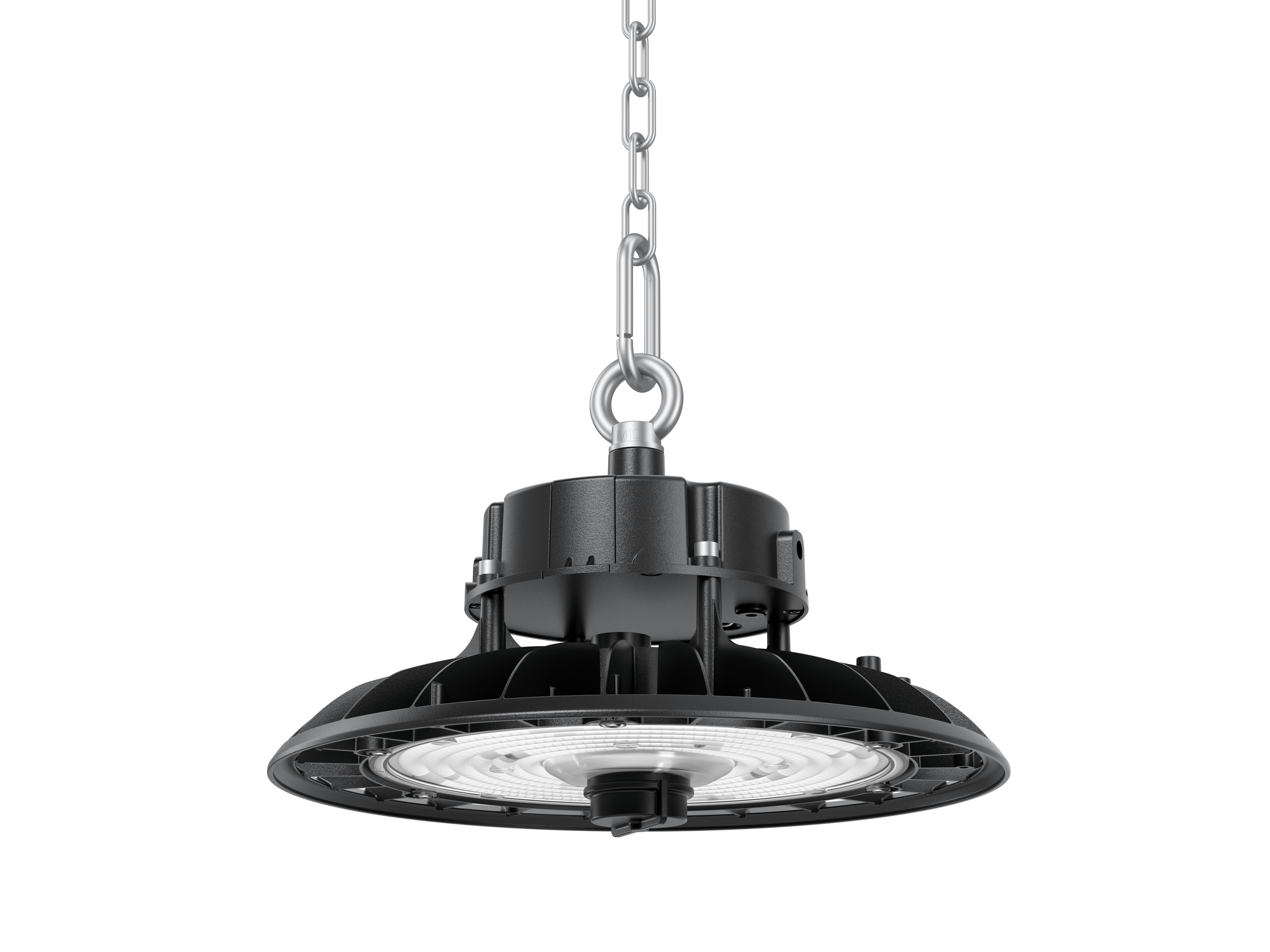

– High Performance Die-Cast Aluminium High Bay
– High efficiency exceeding 160Lm/W CRI ≥ 80
– Die-Cast aluminium structure for high performance thermals and reliability.
– Multi output / power options with 3 options per size
– Suitable for all environments with ratings of IK08 / IP65

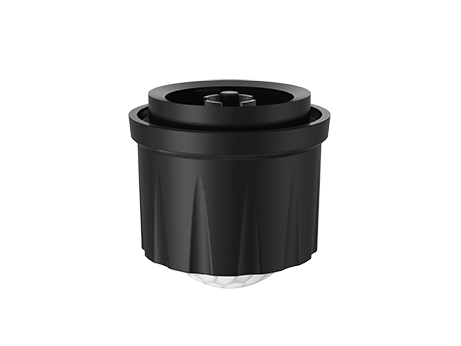

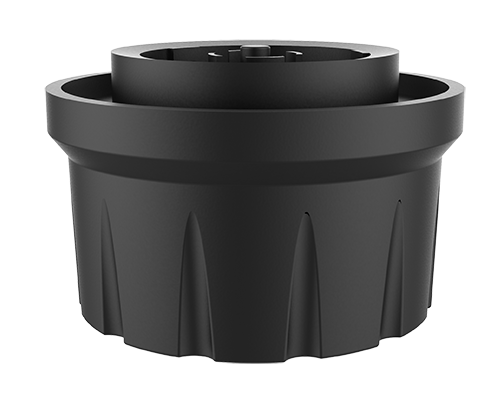

– Zhaga Book 18 base ready for sensor control integration.

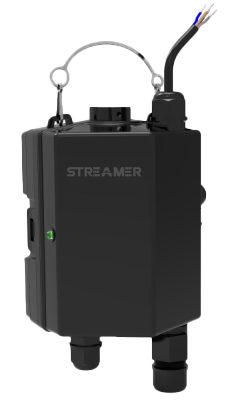

– PowerRay Emergency accessory kits available
At a glance:
| Product Code | Spec sheet | Product Name | CCT (K) | Wattage (W) | Output (lm) | Lm/W | CRI | Beam Angle | Colour / Finish | IP Rating | IK Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S-PR-100/40/B | Download | PowerRay High Bay 60W/80W/100W 4000K IP65 - Grey | 4000K | 60W / 80W / 100W | 9,600/12,800/16,000 | 160 | 80 | 120° | Grey | IP65 | IK08 |
| S-PR-150/40/B | Download | PowerRay High Bay 90W/120W/150W 4000K IP65 - Grey | 4000K | 90W / 120W / 150W | 14,400/19,200/24,000 | 160 | 80 | 120° | Grey | IP65 | IK08 |
| S-PR-200/40/B | Download | PowerRay High Bay 120W/160W/200W 4000K IP65 - Grey | 4000K | 120W / 160W / 200W | 19,200/25,600/32,000 | 160 | 80 | 120° | Grey | IP65 | IK08 |
