Commercial

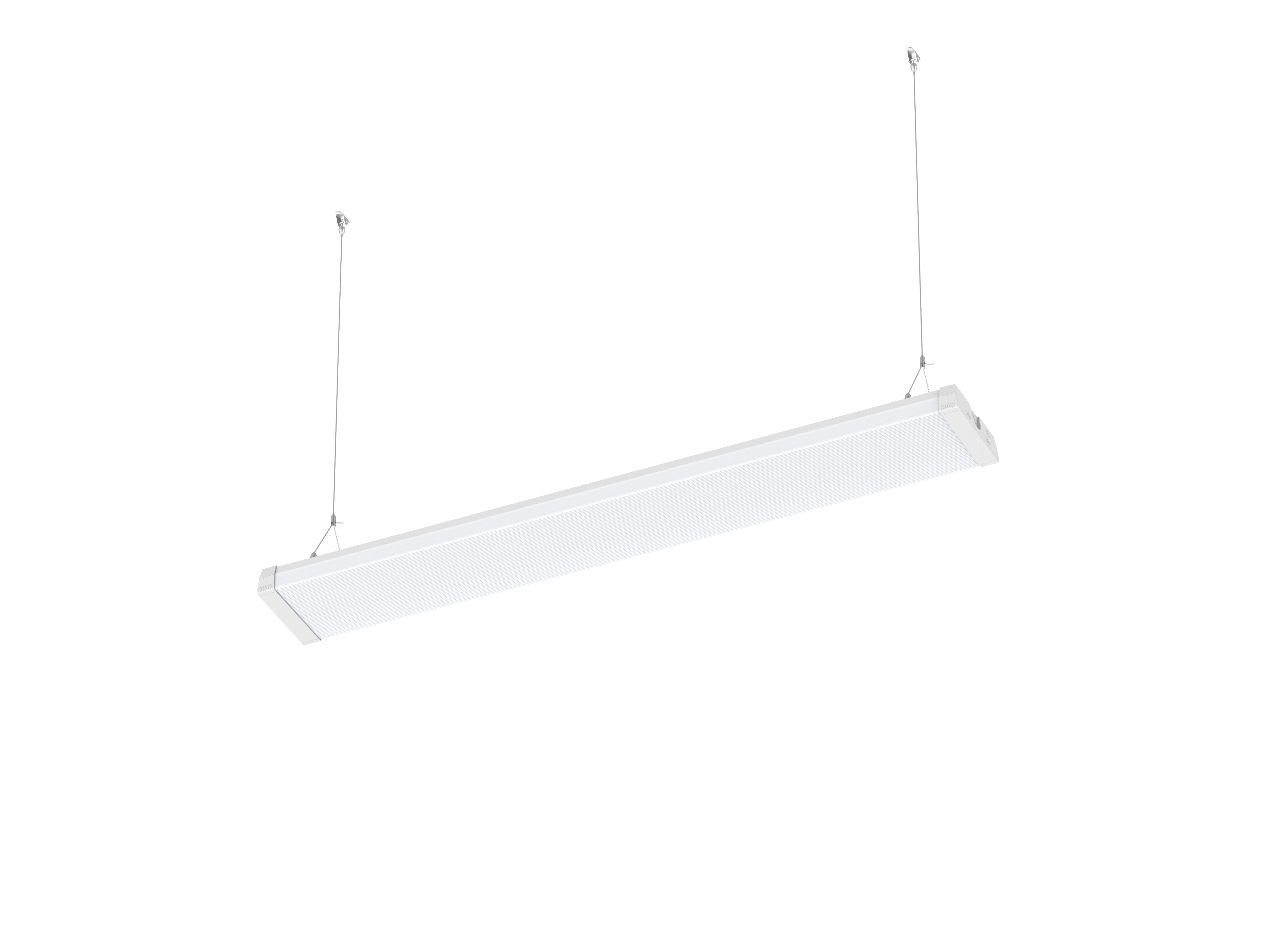

RadiForm
| Wattage |
24 - 38 W |
|---|---|
| Lumens |
2,700 - 4,400 |
– Contemporary UGR<19 commercial linear
– High Efficiency exceeding 120Lm/W
– Design elements to facilitate ultra-fast installation with modular attachments for Microwave and Emergency conversions
– Multi CCT Selectable from 3,000K, 4,000K, 5,000K and 6,500K
– Multi output / power options with 4 options
– Dimmable and Emergency options available
At a glance:
| Product Code | Spec sheet | Product Name | CCT (K) | Wattage (W) | Output (lm) | Lm/W | Colour Temp Selectable (CTS) | CTS Number | CRI | Beam Angle | UGR | Colour / Finish | IP Rating | IK Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S-RF-4/CTS/W | Download | RadiForm Linear UGR CTS 4ft IP44 - White | 3000K/4000K/6500K | 24W/29W/33W/38W | 2,700 / 3,300 / 3,800 / 4,400 | 120 | Y | 3 | 80 | 90° | <19 | White | IP44 | IK06 |
| S-RF-5/CTS/W | Download | RadiForm Linear UGR CTS 5ft IP44 - White | 3000K/4000K/6500K | 24W/29W/33W/38W | 2,700 / 3,300 / 3,800 / 4,400 | 120 | Y | 3 | 80 | 90° | <19 | White | IP44 | IK06 |
-
Modular Acc -
Modular Acc
ModuleEM Emergency Module
View
